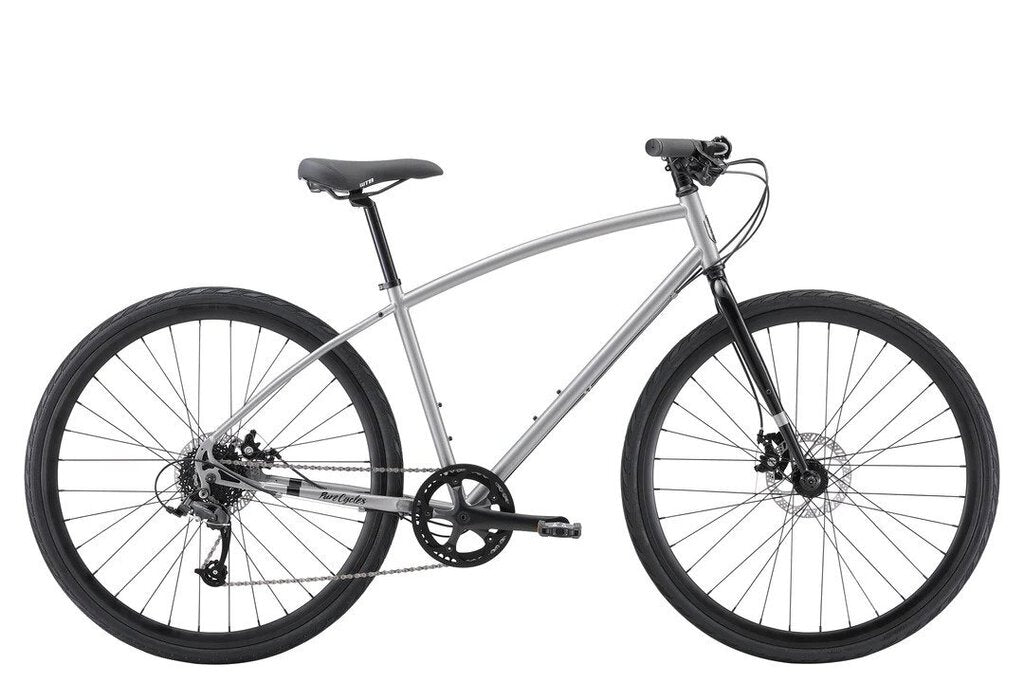

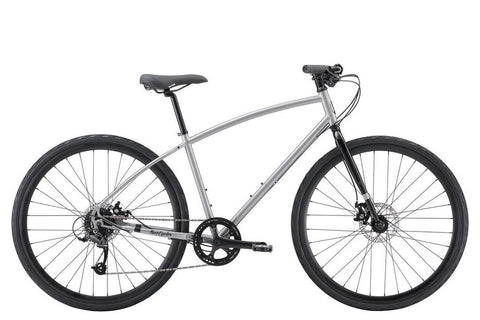

URBAN COMMUTER BIKE
Hybrid doesn’t do it justice. When Pure Cycles sat down to engineer the urban commuter, they wanted to do something different. Something fast. Something fun. And, most importantly, something people would want to ride. And isn't a Hybrid. It's an Urban Assault bike. And it's a blast.
FRAMESET
- Frame: High-Tensile Steel, TIG-Welded
- Fork:
- 1-1/8" High-Tensile Steel, Straight Legs (Disc Compatible)
DRIVETRAIN
- Crank Set:
- 3-Piece Alloy, 170mm for 15" Frames, 175mm for 17.5-20" Frames
- Chainwheel:
- Steel, 42T x 1/2" x 3/32"
- Bottom Bracket:
- Sealed Cartridge, 68 x 122.5mm
- Sprocket:
- N/A
- Freewheel:
- SRAM (8-Speed) 11-32T
- Rear Shifter:
- SRAM X4 8-Speed Trigger Shift
- Chain:
- K.M.C. X8, 1/2" x 3/32"
- Pedals:
- Alloy, 9/16"
BRAKES
- Front Brake:
- Tektro Mechanical Disc, 160mm Rotor
- Rear Brake:
- Tektro Mechanical Disc, 160mm Rotor
- Brake Lever:
- Alloy, 3-Finger Lever
COMPONENTS
- Handlebar:
- Alloy, 640mm Wide x 27Deg Bend
- Stem:
- Alloy, Threadless, 28.6 x 90mm x 7deg x 25.4mm Clamp for 15-17.5" Frames, 100mm for 20" Frames
- Headset:
- Steel, Threadless, 28.6 x 34 x 30mm, Caged Bearings
- Grips:
- Kraton Rubber, 130mm
- Saddle:
- Pure Cycles Urban, Steel Rails
- Seat Post:
- Alloy W/Integrated Clamp, 25.4 x 350mm
- Seat Clamp:
- Alloy, 28.6mm I.D., with Bolt
WHEELS
- Front Wheel:
- 700C x 32H x 14G Alloy-Urban, Q/R
- Rear Wheel:
- 700C x 32H x 14G Alloy-Urban, Q/R (For Cassette)
- Front Hub:
- Alloy, 32H x 14G with Q/R Axle
- Rear Hub:
- Alloy, 32H x 14G with Q/R Axle, Black (For Cassette)
- Spokes:
- 14G Stainless Steel
- Rims:
- 700c x 32H x 14G, Alloy, Double Wall
- Tires:
- WTB Slick Comp 700c x 32mm, Black Wall
- Tubes:
- 700c x 28-35mm, Presta Valve, (48mm)
