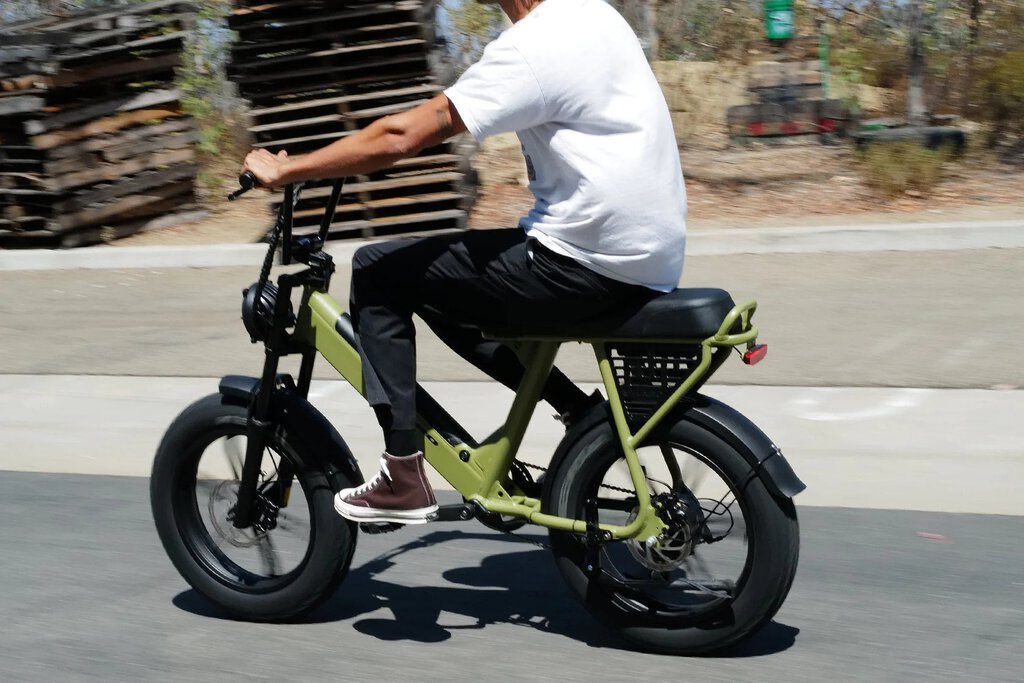

Ready to rip through the neighborhood, run errands, or get squirrely off-road? The Skwad is the perfect bike to mount up with your crew and take it all on. With up to a 40 mile range, this is your true down-for-whatever ride. The Skwad looks retro but rides modern, its oversized tires are at home on pavement and adventurous enough for shortcuts. With a comfy, cafe-style seat, Haro Baseline 9.5" handlebars, and folding foot pegs, you get unmatched comfort and room for a friend. Side-mounted alloy plates give you several options to strap down your gear and bring it along. Quick, safe and stable, the Skwad is your ticket to the outdoors, so grab your squad and get after it!
| Frame Components | |
|---|---|
| Frame | 6061 T6 Aluminium; tapered head tube and internal battery; Built in Grid mounting plate |
| Fork | 100mm travel I Triple crown I Aluminum 32mm stanchions |
| Headset | 1-1/8" - 1-1/5" tappered internal headset |
| Drivetrain | |
| Cranks | Forged aluminum | 170MM |
| Sprocket | 42T Alloy Chainring Alloy Guard |
| Bottom Bracket | Square Tapper | 73mm | 148mm Spindle I Cadence Sensor |
| Chain | KMC Z7 | 7SPD |
| Rear Deralleur | Microshift RD-M26L |
| Derailleur Shifter | Microshift TS39-7 |
| Drive Unit | Bafang 750w |
| Battery | 48V | 13.2AH | 13S4P | 3300mAh | BAK |
| Pedals | 9/16" Cro-Mo Axle, Alloy Body |
| Wheels | |
| Tires | Kenda Krusade 20"X4" |
| Wheels/Rims | Bafang Alloy 6 Spoke Mag Wheel |
| Freewheel/Cassette | Shimano mf-TZ500-7SPD 14-28T |
| Braking System | |
| Brakes | Rush Dual Piston | Open System | 180mm Rotors | STD Mount |
| Brake Levers | Radius 2.5 Finger | Sensor Control Cut Off | Reach Adjustment |
| Other Components | |
| Grips | Dual locking 135mm Velo Grips |
| Handle Bar | Haro Baseline 9.5" |
| Seat | Haro Cafe |
| Stem | Haro Baseline 48mm EXT. |
| Extras | Rear brake Light; Front MX style headlight; left thumb throttle |
